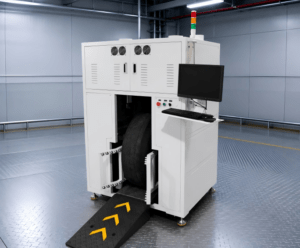

High-Precision Laser Marking Solution for Passenger, SUV, Truck and Bus Tires
Our Tire Laser Marking Machine is designed for permanent, high-speed, and high-precision marking on tire sidewalls. Equipped with dual 50W fiber laser sources, the machine delivers clear and durable markings for serial numbers, DOT codes, QR codes, Data Matrix codes, logos, production dates, and traceability information.
Designed for modern tire manufacturing, the system improves production efficiency while supporting Industry 4.0, MES integration, and complete product traceability.
Features
Dual 50W Fiber Laser System
The machine is equipped with 2 × 50W Maxphotonics fiber lasers, providing stable output, fast marking speed, and excellent marking quality.
High Precision
Laser marking accuracy reaches ±0.05 mm, ensuring sharp and consistent identification on every tire.
Wide Tire Compatibility
Suitable for:
- Passenger car tires
- SUV tires
- Light truck tires
- Heavy truck tires
- Bus tires
- Trailer tires
- Retread tires
Supported tire diameter:
570 mm – 1140 mm
Supported tire width:
250 mm – 400 mm
Permanent Marking
Unlike ink printing or adhesive labels, laser marking produces permanent, wear-resistant identification without consumables.
Intelligent Production Integration
The machine can communicate with:
- MES
- ERP
- PLC
- Barcode systems
- QR Code database
- Production traceability software
Every tire receives a unique identification code for complete lifecycle management.
Typical Applications
The Tire Laser Marking Machine can permanently mark:
- DOT Code
- Tire Serial Number
- QR Code
- Data Matrix Code
- Manufacturing Date
- Batch Number
- Company Logo
- Customer Logo
- Traceability Code
- Product Identification Number
Technical Specifications
| Item | Specification |
|---|---|
| Power Supply | AC220V / 50Hz |
| Rated Power | 1.5 kW |
| Laser Source | 2 × 50W Maxphotonics Fiber Laser |
| Marking Accuracy | ±0.05 mm |
| Cooling Method | Air Cooling |
| Marking Area | 150 × 150 mm |
| Manual Sliding Platform | 200 mm × 2 |
| Machine Dimensions | 1260 × 940 × 1930 mm |
| Machine Weight | Approx. 600 kg |
| Shipping Weight | Approx. 700 kg |
| Wooden Case Size | 1500 × 1500 × 2100 mm |
Applicable Tire Sizes
Passenger Car Tires
- 185/60R14
- 195/60R15
- 205/55R16
- 205/60R16
- 215/55R17
- 225/50R17
- 225/65R17
Typical outside diameter:
577–724 mm
Commercial Truck Tires
Compatible with:
- 7.00R16
- 7.50R16
- 8.25R16
- 9.00R20
- 10.00R20
- 11.00R20
- 12.00R20
- 11R22.5
- 12R22.5
- 13R22.5
- 295/80R22.5
- 315/80R22.5
- 315/70R22.5
Typical outside diameter:
810–1136 mm
Advantages
- High-speed laser marking
- Dual laser configuration for improved productivity
- Permanent and wear-resistant marking
- No ink or consumables required
- Low maintenance
- Stable marking quality
- Easy operation
- Air-cooled laser system
- Wide tire size compatibility
- Supports automatic production lines
- MES and ERP integration
- Improves product traceability
Why Choose Our Tire Laser Marking Machine?
Our machine combines precision laser technology with reliable industrial automation, making it an ideal solution for tire manufacturers seeking higher productivity and complete traceability.
Whether you produce passenger car tires, SUV tires, truck tires, or retread tires, this system delivers consistent marking quality while reducing operating costs and supporting intelligent manufacturing.
Optional Functions
- Automatic tire positioning
- Automatic barcode scanning
- Vision inspection system
- Automatic loading and unloading
- Conveyor integration
- MES communication
- PLC customization
- Database connection
- Customized fixture design
Industries Served
- Tire Manufacturing
- Tire Retreading
- Automotive Parts
- Rubber Products
- OEM Tire Production
- Commercial Vehicle Tire Manufacturing
Request a Quote
Looking for a reliable Tire Laser Marking Machine for your production line?
Contact our engineering team today to discuss your tire size, production capacity, and automation requirements. We provide customized laser marking solutions tailored to your manufacturing process.
