Dual CO2 Laser Marking Machine for Cork | FSH-CO2M-130
- Category: Cork Processing Machinery
- Tags: cork production equipment, laser marking
- Date: 6 5 月, 2026
- Views: 14
- Description:
Dual 60W CO2 laser marking machine for cork stopper dual-end marking. CCD centering positioning, ±0.002mm accuracy. FSH-CO2M-130 by Fangshiheng.
Model: FSH-CO₂M-130
About Us

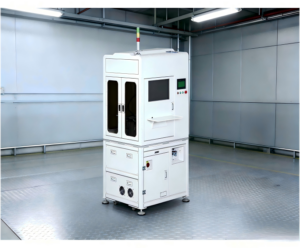

The FSH-CO2M-130 is a professional dual CO2 cork marking machine designed for dual-end and cylindrical surface marking on cork stoppers.
Suzhou Fangshiheng Precision Machinery Co., Ltd. is a trusted global provider of integrated smart manufacturing solutions. We focus on independent R&D, production, and sales of intelligent manufacturing equipment and core components. With full vertical integration from core components and standalone machines to customized process solutions, we deliver reliable industrial equipment for product appearance inspection, precision processing, and composition analysis scenarios for worldwide manufacturers.
Product Overview
The FSH-CO₂M-130 is a professional fully automatic CO₂ laser marking system customized for dual-end and cylindrical surface precision marking on cork stoppers. Equipped with dual 60W CO₂ laser configuration and external high-precision water cooling system, the machine integrates automatic feeding, cylindrical marking, dual-end marking, and automatic blanking in one standalone unit. Supported by dual-station CCD centering recognition and 0.02s ultra-fast laser switching, it delivers consistent, high-definition marking on cork and leather non-metallic materials. Optimized for small-batch and mass standardized production of wine and perfume cork stoppers, this EU-standard automated equipment ensures stable operation, low failure rate and excellent finished product consistency.
Core Key Features
-
Dual 60W Independent Laser Configuration: Adopts dual 60W CO₂ laser sources, matching dual 150×150mm marking range. Realizes simultaneous or independent marking on cork cylindrical surface and both ends, balancing marking depth and definition without material scorching or blurring.
-
CCD Centering Positioning Technology: Dual-station CCD visual recognition achieves accurate centering and static marking, effectively solving positioning deviation caused by manual placement and irregular cork shapes, ensuring uniform marking position for every product.
-
Industrial-Grade Ultra-High Precision: Repeated positioning accuracy up to ±0.002mm, supports 0.15mm ultra-fine character, logo, batch code and anti-counterfeiting pattern marking, meeting high-standard customized packaging requirements for premium wine and cosmetic brands.
-
High-Stability External Water Cooling System: Independent external water chiller with ±0.3℃ precise temperature control, perfectly supporting long-time continuous operation of dual 60W lasers, stable laser power output and prolonged service life of core optical components.
-
Intelligent Omron PLC Control: Adopts industrial Omron PLC core control system with stable operation and strong anti-interference ability. Supports flying marking, automatic serial number generation and batch one-key coding, greatly simplifying factory operation procedures.
-
Wide Environmental Adaptability & High Safety: Works stably under 5℃-30℃ industrial environment; Class 1 laser safety rating fully complies with EU industrial safety standards. Built-in multi-language interface (English, Chinese, Portuguese) adapts to global factory teams.
Full Technical Specifications
Basic Equipment Parameters
|
Parameter
|
Value
|
|---|---|
|
Laser Wavelength
|
10.6μm (CO₂ Gas Laser)
|
|
Laser Power
|
Dual 60W
|
|
Marking Range
|
150×150mm / 150×150mm
|
|
Repeat Positioning Accuracy
|
±0.002mm
|
|
Max Marking Speed
|
≤8000mm/s
|
|
Minimum Character Size
|
0.15mm
|
|
Adjustable Engraving Depth
|
≤1.2mm (material adjustable)
|
|
Power Supply
|
220V / 50Hz
|
|
Laser Safety Class
|
Class 1
|
|
Supported Languages
|
English, Chinese, Portuguese
|
Mechanical & Cooling Parameters
|
Parameter
|
Value
|
|---|---|
|
Overall Dimension
|
1030×900×16700mm (main unit)
|
|
Total Weight
|
350kg (main body) + 46kg (water chiller)
|
|
Operating Temperature
|
5℃ – 30℃
|
|
Cooling Method
|
External independent water cooling (dual laser universal)
|
|
Water Chiller Temperature Accuracy
|
±0.3℃
|
Performance & Laser System Parameters
|
Parameter
|
Specification
|
|---|---|
|
Beam Quality (M²)
|
≤2
|
|
Modulation Frequency
|
0–25kHz (0–100% adjustable)
|
|
Ultra-Fine Line Width
|
0.015mm
|
|
Total Power Consumption
|
≤5.5kW
|
|
Laser Power Stability
|
<±5%
|
|
Full Beam Divergence Angle
|
<7mrad
|
|
Laser Mode
|
M² < 1.2
|
|
Polarization
|
>100:1 Horizontal Linear Polarization
|
|
Laser Switching Time
|
≤0.02s
|
Control System Specifications
|
Item
|
Description
|
|---|---|
|
Core Control
|
Omron Industrial PLC
|
|
Communication Interface
|
USB / I/O / Network Port
|
|
Supported File Formats
|
BMP, PLT, DXF, DST
|
|
Software Functions
|
Flying marking, dynamic serial number, batch coding, one-key parameter storage and recall
|
Laser Technology Comparison
|
Parameter
|
Fiber Laser
|
CO₂ Laser (Our Machine)
|
UV Laser
|
|---|---|---|---|
|
Wavelength
|
1064nm
|
10.6μm
|
355nm
|
|
Typical Power
|
20–1000W
|
10–150W
|
3–20W
|
|
Best For
|
Metals & Hard Non-metals
|
Cork, Leather & Packaging Non-metals
|
Ultra-fine processing on special materials
|
|
Max Engraving Depth
|
≤1.2mm
|
≤0.8mm
|
≤0.3mm
|
|
Min Character
|
0.15mm
|
0.2mm
|
0.1mm
|
|
Electro-optical Efficiency
|
30–60%
|
10–15%
|
5–10%
|
|
Industrial Application
|
Hardware & Electronics
|
Wine Corks, Perfume Stoppers, Leather Packaging
|
Glass, PCB, Wafer
|
Application Scenarios
-
Wine & Spirit Packaging: Custom logos, vintage dates, batch numbers, QR codes and anti-counterfeit marks for wine cork stoppers.
-
Luxury Cosmetic Packaging: High-definition marking for perfume corks and leather sealing accessories.
-
Leather Product Processing: Precision pattern and text marking for leather packaging and decorative accessories.
-
Custom OEM Production: Supports personalized customized marking for all types of cork and non-metallic packaging accessories.
Why Choose FSH FSH-CO₂M-130?
Different from ordinary single-laser marking machines, our dual 60W CO₂ laser marking system adopts dual independent laser design + external constant-temperature water cooling + dual CCD visual positioning, solving common industry pain points such as uneven marking depth, position deviation and unstable long-term operation. Equipped with mature Omron industrial control configuration, the equipment features low failure rate, simple operation and strong compatibility. Fully compliant with EU industrial safety specifications and multi-language global adaptation, it is the ideal automated marking solution for medium and high-end cork packaging manufacturers worldwide.
