Cork Automatic Carton Sealing Machine
- Category: Cork Processing Machinery
- Tags: Automatic Carton Sealing Machine, Cork Carton Sealer
- Date: 6 5 月, 2026
- Views: 12
Product Overview

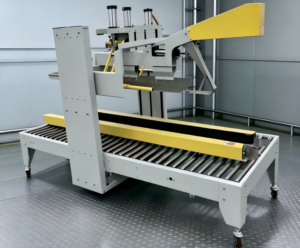

This automatic carton sealing machine is specially optimized for tall and high-spec cartons in automated packaging lines. Equipped with an upper driving belt line, bearing rollers and open-top carbon steel acrylic guard, the equipment integrates safety door stop function and Pilz safety relay protection to achieve comprehensive industrial safety standards. Featuring automatic positioning, top flap folding, timing conveying and unattended operation, the machine supports standalone use and full assembly line docking. It can also be combined with SPF-12 to form an I-shaped carton sealer, making it a versatile, stable and high-efficiency sealing solution for automated packaging production.
Core Features
-
Upgraded Structure for Tall Cartons: Added upper driving belt line and 50mm bearing rollers ensure stable conveying and pressing for high cartons, avoiding slipping, offset and incomplete sealing during operation.
-
Safe & Open Protective Structure: Adopts carbon steel guard frame + 8mm acrylic protective cover with open-top design for easy observation and maintenance. Equipped with door-stop safety mechanism and Pilz safety relay to stop operation immediately when the guard is opened, fully complying with EU industrial safety regulations.
-
Smooth & Wrinkle-Free Sealing: Side driving structure guarantees stable carton transmission. The soft top folding design realizes fast and flat flap folding without creases, ensuring neat and standardized carton sealing appearance.
-
High Load & Durable Construction: 3mm thick sheet metal and 4mm main column plates with RAL7035 carbon steel painted finish greatly enhance structural rigidity. The maximum equipment load reaches 40kg, adapting to heavy packaging scenarios.
-
Unattended Automatic Operation: Supports automatic carton feeding, top flap forming, precise sealing and automatic output. No manual supervision is required during continuous production, perfectly matching fully automatic packaging lines.
-
Flexible Specification Switching: Manual adjustment is required for different carton sizes. The whole specification replacement only takes 5–8 minutes, realizing fast switching of multi-size carton production.
-
Independent Electric Cabinet & Mobile Design: Independent compact electric cabinet improves operational stability and safety. Equipped with brakeable universal casters for flexible movement and fixed positioning on site.
-
Diversified Combination Application: Supports standalone sealing operation and can be combined with SPF-12 equipment to form an I-shaped carton sealing system to meet higher-level packaging standards.
Technical Specifications
|
Item
|
Specification
|
|
Power Supply
|
220V / 50Hz
|
|
Rated Power
|
400W
|
|
Working Air Pressure
|
4–6kgf/cm²
|
|
Overall Dimension
|
2200×1100×1800mm (L×W×H)
|
|
Table Height
|
580–680mm (Adjustable)
|
|
Applicable Carton Size
|
Length: 600mm; Width: 400–500mm; Height: 650–850mm
|
|
Sealing Speed
|
4 Cartons/Min
|
|
Max Load Capacity
|
40kg
|
|
Applicable Tape Width
|
50–70mm
|
|
Sealing Tape Type
|
BOPP Tape
|
|
Machine Material
|
Painted Carbon Steel, RAL7035
|
|
Sheet Metal Thickness
|
3mm
|
|
Main Column Thickness
|
4mm
|
|
Roller Diameter
|
50mm (With bearing)
|
|
Acrylic Guard Thickness
|
8mm
|
Working Modes
-
Manual Debug Mode: Used for equipment debugging, parameter testing, trial sealing and daily maintenance inspection.
-
Continuous Automatic Mode: Realizes fully automatic feeding, folding, sealing and output, supporting long-term unattended mass production.
Working Process
Automatic carton input → upper flap forming & folding → automatic tape sealing → automatic output. The whole process is highly automated, which effectively reduces manual intervention and improves the continuity and efficiency of the packaging line.
Core Components & Brands
|
Component
|
Brand
|
|
Low-Voltage Electrical Parts
|
Schneider
|
|
Limit Sensors & Travel Switches
|
Omron
|
|
Pneumatic Components
|
SMC
|
|
Drive Motor
|
Taibang
|
|
Safety Relay
|
Pilz
|
|
Mobile Casters
|
Brakeable Universal Casters
|
Application Industries
Widely applied in automatic packaging lines for cork products, food, daily chemicals, electronics, logistics and e-commerce commodities. Available for standalone sealing operation and inline assembly line integration. It can also combine with SPF-12 machine to form I-shaped full sealing packaging, meeting diversified and high-standard carton packaging requirements.
