In modern packaging production, the efficiency and quality of carton forming directly determine the smoothness of the entire packaging line. Manual box forming is time-consuming and labor-intensive. It also causes uneven box shapes and low output. These problems easily create production bottlenecks and raise labor costs. For mass-production manufacturers, an automatic carton forming machine (box former) is the best upgrade solution. It fully automates flat carton unfolding, bottom folding, tape sealing and box output to stabilize packaging quality and improve line efficiency.

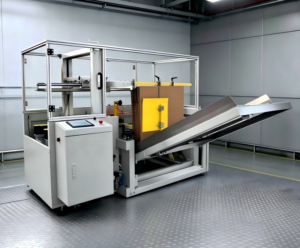

Suzhou Fangshiheng launches a professional automatic carton forming machine. It is customized for cork packaging and suitable for multiple industries. Equipped with Omron PLC control and Pilz safety protection, this box former runs stably at 4 cartons per minute. It delivers neat, crease-free and firm carton boxes. It replaces manual work perfectly and supports long-term unattended automated production. It can perfectly match our cork visual counting machine to build a complete automated packaging line.
1. What Is an Automatic Carton Forming Machine (Box Former)?
An automatic carton forming machine, commonly called a box former, is core front-end equipment for automated packaging lines. It automatically takes flat folded cartons from the storage bin. It completes opening, shaping, bottom folding and tape sealing. Finally, it outputs finished rectangular carton boxes for downstream packing procedures.
Different from manual operation, this box forming equipment runs with fixed mechanical and pneumatic logic. It ensures consistent box size, flat bottom and uniform appearance. It is widely used in cork product packaging, food packaging, daily chemical packaging and logistics carton forming scenarios. It is an indispensable front-end device for the complete cork production line.
2. Core Advantages of Box Former Equipment
Stable and Damage-Free Box Forming
The machine adopts side stable conveying and soft folding structure. It avoids carton skew, jamming, creases and deformation. All finished boxes are flat and tidy. It protects product packaging appearance and improves overall product grade.
Industrial Safety Protection Design
Equipped with Pilz safety relay and full surround safety guard frame, the box former meets EU industrial safety standards. It effectively prevents accidental contact risks during operation. It ensures safe multi-shift production in modern workshops, fully matching the safety standards of ourcork packaging equipment series.
Large Capacity for Unattended Operation
The built-in carton storage bin holds 50 to 60 flat cartons at one time. It reduces frequent manual feeding. It supports long-term continuous operation and greatly lowers labor investment.
High Efficiency & Low Failure Rate
The forming speed reaches 4 cartons per minute (240 cartons/hour). The operational efficiency is over 95% and the carton loss rate is only 2%. Adopting Omron, SMC and Schneider brand components, the equipment runs stably with low failure rate.
Energy Saving & Low Operating Cost
The total power is only 400W. Optimized pneumatic and electric design reduces power and air consumption. It helps factories save daily operating costs for long-term profit growth.
3. Technical Specifications
|
Parameter
|
Value
|
|
Working Speed
|
4 cartons/min
|
|
Rated Power
|
400W
|
|
Power Supply
|
220V / 50Hz
|
|
Working Air Pressure
|
4–6 kg/cm²
|
|
Overall Dimension
|
2300×2200×1500mm
|
|
Adjustable Table Height
|
600–650mm
|
|
Machine Weight
|
About 500kg
|
4. Working Process of Automatic Box Forming
The entire forming process is fully automatic without manual intervention. The workflow is smooth and orderly:
Carton Suction & Feeding: High-strength suction cups pick up flat cartons accurately and feed materials stably.
Automatic Opening & Shaping: Mechanical structure unfolds flat cartons into standard rectangular box shapes.
Soft Bottom Folding: Multi-directional folding mechanism folds four bottom flaps in order without damage.
Automatic Tape Sealing: Standard tape sealing fixes the box bottom firmly to prevent loosening.
Automatic Discharging: Finished carton boxes are output continuously for downstream packaging.
5. Three Working Modes
The box former supports three operation modes to adapt to different production scenarios:
Debug Mode: Used for daily inspection, parameter adjustment and equipment maintenance.
Single Forming Mode: Suitable for sample production, trial run and small-batch production.
Continuous Operation Mode: For large-scale mass production to maximize line efficiency.
6. Production Line Integration
This automatic carton forming machine supports flexible installation. It can work alone for small-batch production. It can also be connected with counting machines, packaging machines and sealing machines to form a fully automated assembly line, realizing one-stop production with our full-set packaging equipment. The compact structure and adjustable height adapt to most factory layouts with minimal transformation.
7. Application Scope
The box former is specially optimized for cork packaging lines. It also serves multiple industries:
-
Cork stopper and cork product manufacturing
-
Food and beverage packaging
-
Daily chemical and cosmetic packaging
-
Electronic parts packaging
-
E-commerce and logistics carton forming
8. Daily Maintenance & Operation Advantages
The equipment features simple operation and easy maintenance. The touch screen control is intuitive. Workers can master operation quickly. The simplified mechanical structure reduces daily maintenance difficulty. Fast specification switching only takes 5–10 minutes, which supports flexible production of multiple carton sizes.
Conclusion
The automatic carton forming machine (box former) is an essential device for modern packaging automation. It solves the disadvantages of slow manual box forming, inconsistent quality and high labor cost. With stable performance, safety design and low energy consumption, it helps packaging factories achieve efficiency improvement and cost reduction. It is the ideal front-end equipment for high-standard automated packaging lines.
